1300GSM 1500D30X32 High Strength Membrane Structure PVC Coated Polyester Fabric

Description:

1300GSM 1500D 30X32 is the most strong item in membrane structure applications.

Consúltenos Lista anterior

550GSM 500D 18X17 Bag PVC Laminated Fabric

Tela de poliester revestida PVC retardante del marco del bloqueo de la tienda el 99,9% del partido de 850GSM 1000D23X23
  • Descripción del producto

+86-(0)573-87985868

[email protected]

Technical Data Sheet

Properties

Units

Test method

Average value

Base Fabric Yarn

Denier

1500 x 1500D

Base Fabric Density

Thread/inch

FZ/T01003

30x32

Finished Fabric Weight

Gram/m2

FZ/T01003

1300±3%

Thickness

mm

FZ/T01003

1.00±3%

Tensile strength at MD

N/5cm

GB/T1040

6000

Tensile strength at CD

N/5cm

GB/T1040

6000

Tearing Strength at MD

N/5cm

GB/T16578

1000

Tearing Strength at CD

N/5cm

GB/T16578

1000

Peeling Strength

N/5cm

GB/T3917

100

Temperature range

℃

-50 ~ 70

Flame retardant

B1,B2,M1,M2,

NFPA-701,C 19

Surface treatment

Acrylic, PVDF

High strength · membrane · architecture
1300GSM 1500D30X32
High Strength Membrane Structure
Heavy-duty PVC coated polyester fabric engineered for large-span tensile membrane structures
1300 GSM
1500D Denier
30X32 Weave
B1 Fire
1300GSM Membrane Structure Fabric
Product overview
Heavy-duty tensile membrane fabric
1300GSM 1500D30X32 High Strength Membrane Structure PVC Coated Polyester Fabric is a premium architectural membrane engineered for large-span tensile structures. The material features a high-tenacity 1500 denier polyester base cloth with a dense 30x32 weave per square inch, providing exceptional tensile and tear strength. The total weight of 1300 grams per square meter ensures superior dimensional stability and load-bearing capacity. Both sides are coated with specialized PVC resin, incorporating UV stabilizers, anti-fungal agents, and flame retardant additives. The surface is finished with PVDF lacquer for self-cleaning properties and enhanced weather resistance. This fabric is designed for permanent and semi-permanent structures requiring high mechanical performance and long-term durability.
Core advantages
High tensile strength
1500D base with 30X32 weave. Breaking strength ≥ 4500/4200 N/5cm.
Dimensional stability
Low elongation under tension. Maintains structural integrity under wind and snow loads.
Weather resistance
UV stabilized with PVDF top coat. Resists moisture, mildew, and temperature extremes.
Self-cleaning
PVDF surface treatment reduces dirt adhesion. Rainwater washes away pollutants.
Technical specifications
Base fabric 1500D / 1500D
Weave density 30 x 32 / sq.inch
Total weight 1300 GSM (±30g)
Breaking strength ≥ 4500/4200 N/5cm
Tear strength ≥ 600/550 N
Fire rating B1 / M2 / NFPA 701
Temperature range -30°C to 70°C
Application scenarios

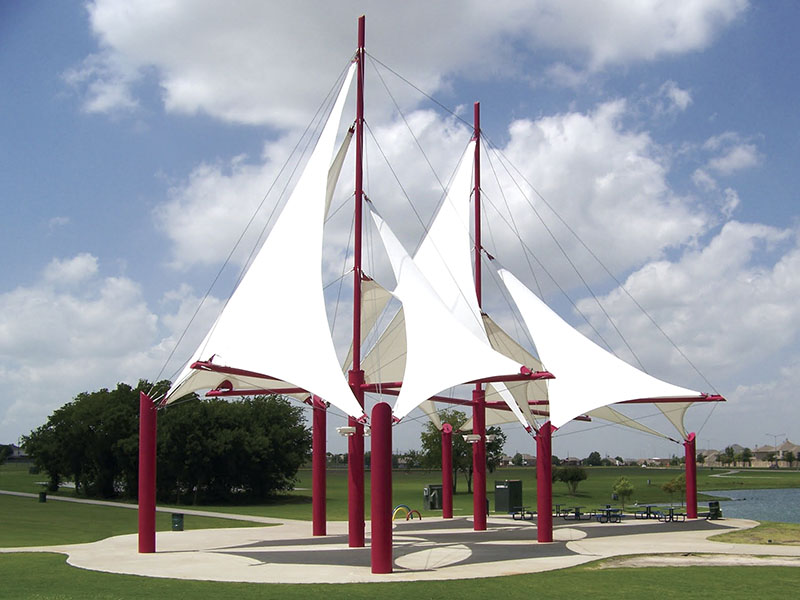

Stadiums Roofing, facades, long-span covers
Transport Airport terminals, railway stations, bus canopies
Industrial Warehouses, storage halls, logistics centers
Commercial Mall atriums, exhibition centers, event venues
Landscape Shade structures, pavilions, amphitheaters
ⓘ
Installation & maintenance
Use calibrated tensioning equipment. Proper tension prevents water pooling and stress fractures. Compatible with HF and hot-air welding. Clean with pH-neutral detergents only. Store rolls horizontally in dry, ventilated conditions.
Frequently asked questions
What is the recommended tension for installation?
Recommended tension ranges from 2.5 to 3.5 kN/m depending on span length and load requirements. Calibrated tensioning equipment should be used to ensure uniform distribution across the membrane surface.
How does this compare to 900GSM membrane fabric?
1300GSM fabric offers significantly higher tensile strength, tear resistance, and dimensional stability. It is designed for larger spans and higher load requirements where 900GSM materials may not provide sufficient structural performance.
What is the expected service life?
With proper installation and maintenance, the fabric provides 15-20 years of service life. The PVDF top coat and UV stabilizers protect against degradation from sunlight and environmental exposure.
Can the fabric be welded onsite?
Yes. The material is compatible with high-frequency welding and hot-air welding techniques. Onsite welding is common for large-span installations. Weld strength should be tested to ensure it matches the base fabric tensile strength.
1300 GSM 1500D 30X32 B1 fire rated PVDF self-cleaning 15-20 year life
